8 B&S 6 Meter Anderson Power Lead with Ignition Sensor Relay
8 B&S 6 Meter Anderson Power Lead with Ignition Sensor Relay
Leads Contains
Genuine 50 amp Anderson Plugs
8mm Ring Cable lug (10-8)
50amp Midi fuse
50amp Inline Midi fuse holder
8 B&S Tycab cable
Included split tube for extra protection

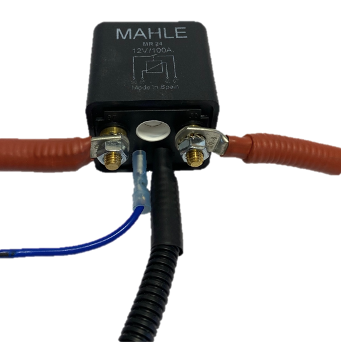

100amp Heavy Duty Relay Normally open
3 Meters of ignition sensor wire (blue 4mm Single core cable)
Leads are Available in Various lengths.
Midi fuse is Approximately 300mm from Relay.
Fuse can be upgraded to higher amperage if needed and placement of fuse and relay can be moved if required.
The ignition sensing relay will connect the power lead to vehicle's battery system when vehicle ignition is switched on. Similarly it will isolate the power lead from vehicle's battery when the vehicle's ignition is turned off. This will prevent any accessories connected to your power lead from draining your vehicles battery while it is switched off. You will need to tap the blue positive wire into an ignition power source.
Wire specification: 8 B&S (7.71mm2) twin core. Amp Rating 59.2amp
Relay Specification: 12V 100amp Normal open Heavy Duty Relay( Peak Current of 180amp)
Most of Tailored 12 Volts leads and adaptors are manufactured in our Queensland workshop are made with a majority of Australian Made components.
PLEASE BE AWARE- Anderson plugs come in a range of colours and sizes, with each colour being a unique mould to prevent incorrect connection. Please ensure you have selected the correct colour and size before proceeding with purchase.
DISCLAIMER: Before installing on any vehicle please seek professional advice to ensure correct installation.
