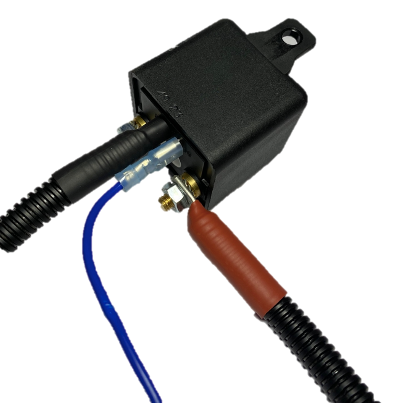

Ignition Sensor relay add on

This lead can be added to any Battery Lugs leads or adaptor ordered.

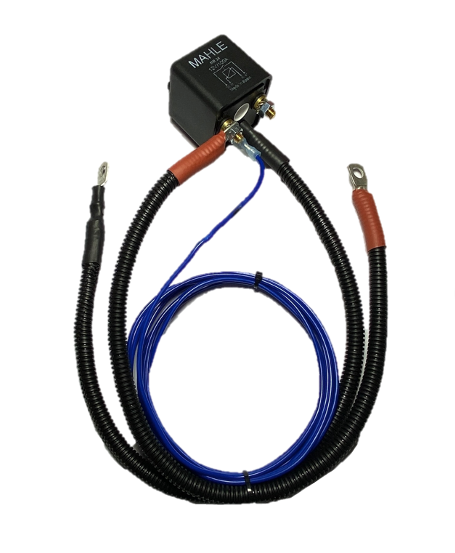

lead includes

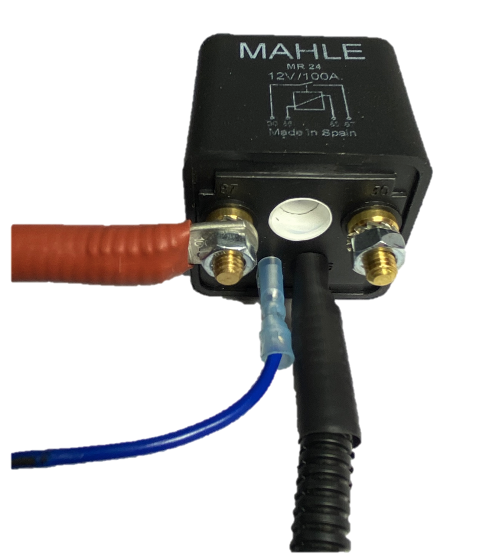

Relay - 12V 100amp Normal open Heavy Duty Relay( Peak Current of 180amp)

500mm of 8 B&S positive red wire  -8mm ring cable lugs on battery end and 6mm cable lug on relay end.

500mm of 8B&S Negative Black wire. - Fully installed female spade terminal on relay end and 8mm cable lug on battery end

3 Meter of 4mm blue ignition wire.  Fully installed female spade terminal on relay end

Different size lugs or various length of cable are available.

Wire specification

8 B&S (7.71mm2) single core cable, Amp Rating -74amp continues

4mm  (1.84mm2) single core cable, Amp Rating - 28amp continues

The ignition sensing relay will connect the power lead to vehicle's battery system when vehicle ignition is switched on.  Similarly it will isolate the power lead from vehicle's battery when the vehicle's ignition is turned off. This will prevent any accessories connected to your power lead from draining your vehicles battery while it is switched off.

The blue positive wire on the Ignition sensing relay needs to be connected to an ignition Power source (circuit which comes on when the vehicle's ignition is switched on) This can be tapped into a direct power line or added to the circuit by an ignition fuse in your fuse block.

Most of Tailored 12 Volts leads and adaptors are manufactured in our Queensland workshop are made with a majority of Australian Made components.

DISCLAIMER: Before installing on any vehicle please seek professional advice to ensure correct installation.
